Emergency Room

An emergency room is one of the most complex and time-critical systems in a city. Patients arrive unpredictably, injuries differ in severity, and resources like doctors and operating rooms are limited. Every decision—who to treat first, which room to prepare, how to allocate staff—can directly affect patient outcomes.

Even in a modern hospital, the ER operates under constant pressure. Delays increase risk, overcrowding reduces efficiency, and poor coordination can lead to serious consequences. The challenge is not only medical—it is operational.

Recent portrayals of emergency medicine, such as The Pitt, highlight the intensity of hospital workflows. While dramatized, they remind us how resource-constrained these environments are and how small decisions can cascade into major consequences. This motivated the simplified model developed here.

© Warner Bros. Discovery Source

In this article, we construct a simulation model of an emergency room to understand its dynamics and identify opportunities for improvement. The goal is to analyze how scheduling rules, resource constraints, and system interactions influence performance. See Günal 2010 for an excellent review of related work.

Specifically, we will:

Model the current ER process as a simulation.
Define key objectives and measurable performance indicators.
Analyze system behavior and identify bottlenecks.
Explore alternative decision policies to improve outcomes.

The conceptual framework for this model was inspired by Kramer et al. (2019):

"Other relevant applications arise in the context of health-care, where... patients have to be assigned to surgery rooms that must be equipped by considering the type... of surgery to be performed. In such cases, the weight usually models a level of urgency for the patient."

Let’s begin by formalizing the process model.

Process Model

Patients are classified in two ways: 1. Severity: The ER uses the Emergency Severity Index to triage patients based on acuity and anticipated resource needs. 2. Type of Injury: Defined based on standard medical classifications.

Resources

Surgery Rooms: Must be prepared based on the type (family) of surgery. Setup times vary by injury type and are defined in the model configuration.
Doctors: Qualified for specific subsets of injuries.

Process Dynamics

PD-A: Patient health deteriorates if not treated; severity increases over time, potentially leading to death.
PD-B: Efficiency decreases as the waiting room becomes overcrowded due to staff stress and resource over-allocation.
PD-C: High-severity patients face a risk of mortality during surgery.
PD-D: Surgery duration correlates with injury severity.
PD-E: Patient arrival rates fluctuate, typically decreasing at night.

While many supporting processes exist in a real ER, we focus on these core elements to maintain a useful level of abstraction for process optimization.

Key Objectives & Observations

The simulation balances two competing factors: the natural deterioration of patient health and the treatment process that stops it. Our objective is to minimize loss of life and waiting times while maximizing treatment efficiency.

The head nurse currently schedules patients based on a simple principle:

Most urgent injuries first.

We aim to explore if we can also: * Minimize overall waiting times. * Reduce the frequency of surgery room re-configurations (setups).

Analysis

Due to the variety of injuries, surgery rooms require frequent setup changes. We often observe rooms being re-configured even when other patients with the same injury type are already waiting.

@file:Repository("*mavenLocal")
//@file:DependsOn("com.github.holgerbrandl:kalasim:0.6.97-SNAPSHOT")

//todo use artifact for release
//@file:DependsOn("com.github.holgerbrandl:kalasim:0.6.92")
//@file:DependsOn("com.github.holgerbrandl:kravis:0.8.1")
//@file:DependsOn("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.5.2")

import org.kalasim.examples.er.*
import org.kalasim.*
import org.kalasim.monitors.MetricTimeline
import kotlin.math.pow
import kotlin.math.sqrt
import kotlin.random.Random
import org.kalasim.plot.kravis.display
import org.koin.core.qualifier.named


import org.kalasim.examples.er.*

kravis.SessionPrefs.OUTPUT_DEVICE = kravis.device.JupyterDevice() // bug in library,

Simulation

Let's start by creating the model.

val er = EmergencyRoom(
    numPhysicians = 8,
    patientArrival = exponential(0.25.hours),
)

// enable log to capture events for later analysis
er.enableEventLog()

org.kalasim.EventLog@499619bb

Now run it for some days, and print its state afterwards

er.run(7.days)

// print the object to render short status summary
er

EmergencyRoom Summary Statistics (at t=2022-03-02T06:00:00Z):
  Physicians: 8
  Rooms: 4
  Waiting Area Capacity: 300

  Incoming Patients: 344
  Currently Waiting: 12
  Treated Successfully: 291
  Deceased: 37
  Success Rate: 88,72%

  Nurse Policy: FifoNurse

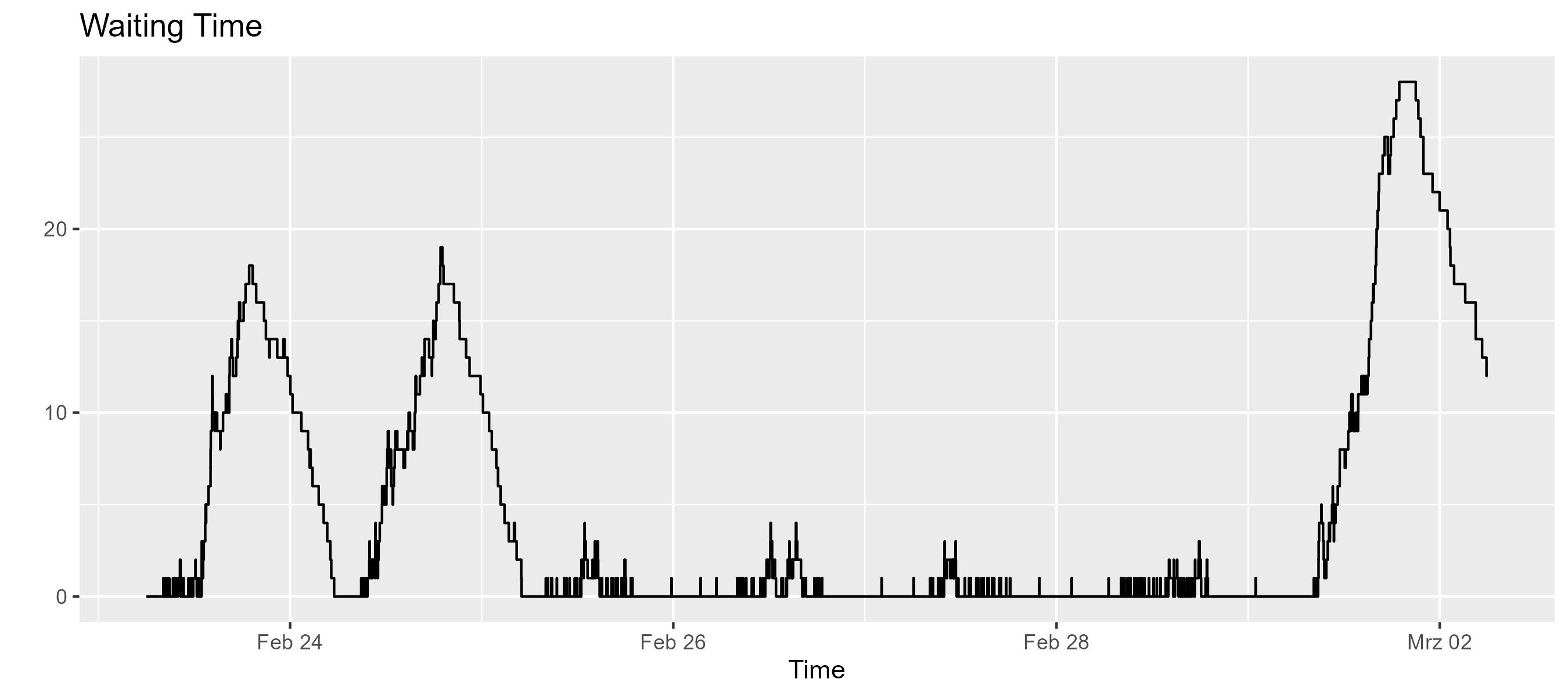

er.waitingLine.sizeTimeline.display("Waiting Time")

jpeg

er.treatedMonitor.display("Treated Patients")

jpeg

Thats visualization is technically correct, but most likely we rather want to see treated patients per day

import org.kalasim.plot.kravis.displayStateCounts

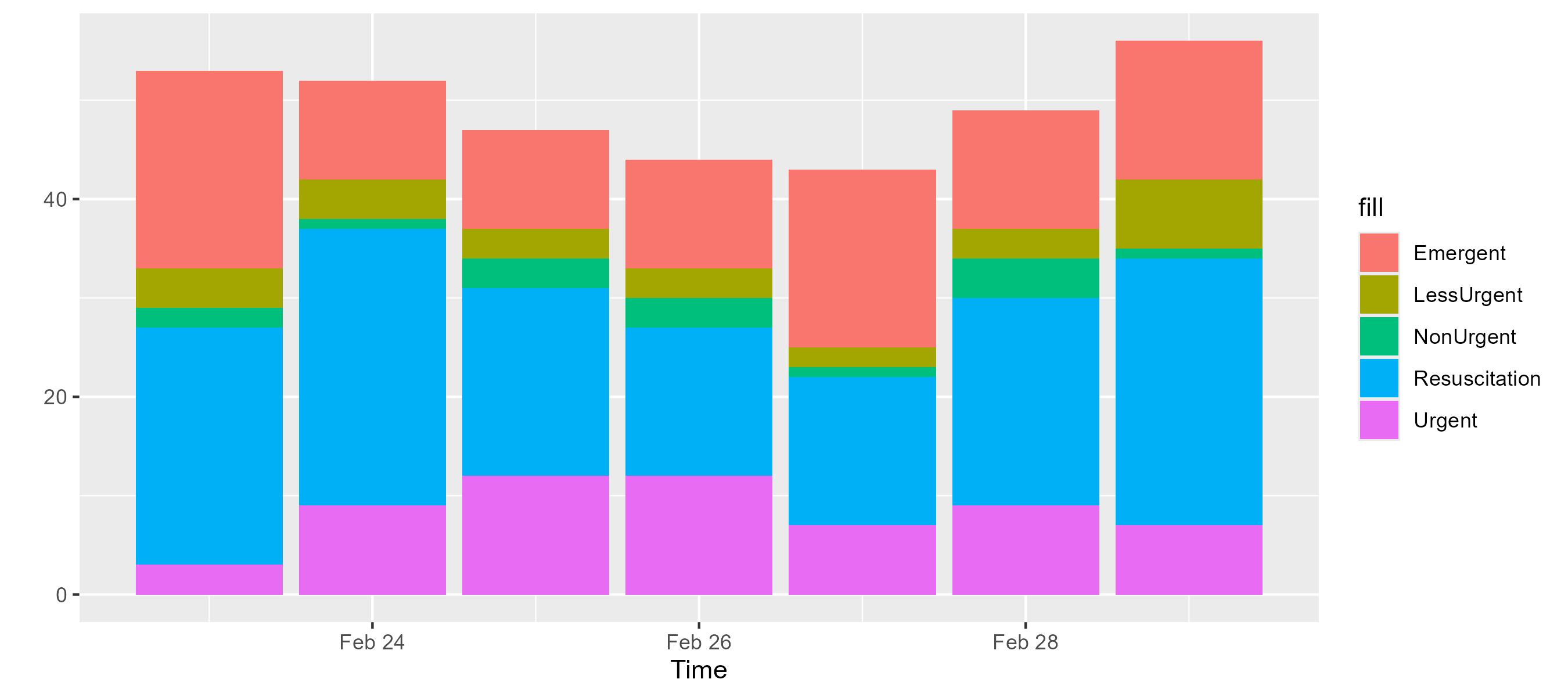

er.patients.map { it.severity }.displayStateCounts()

jpeg

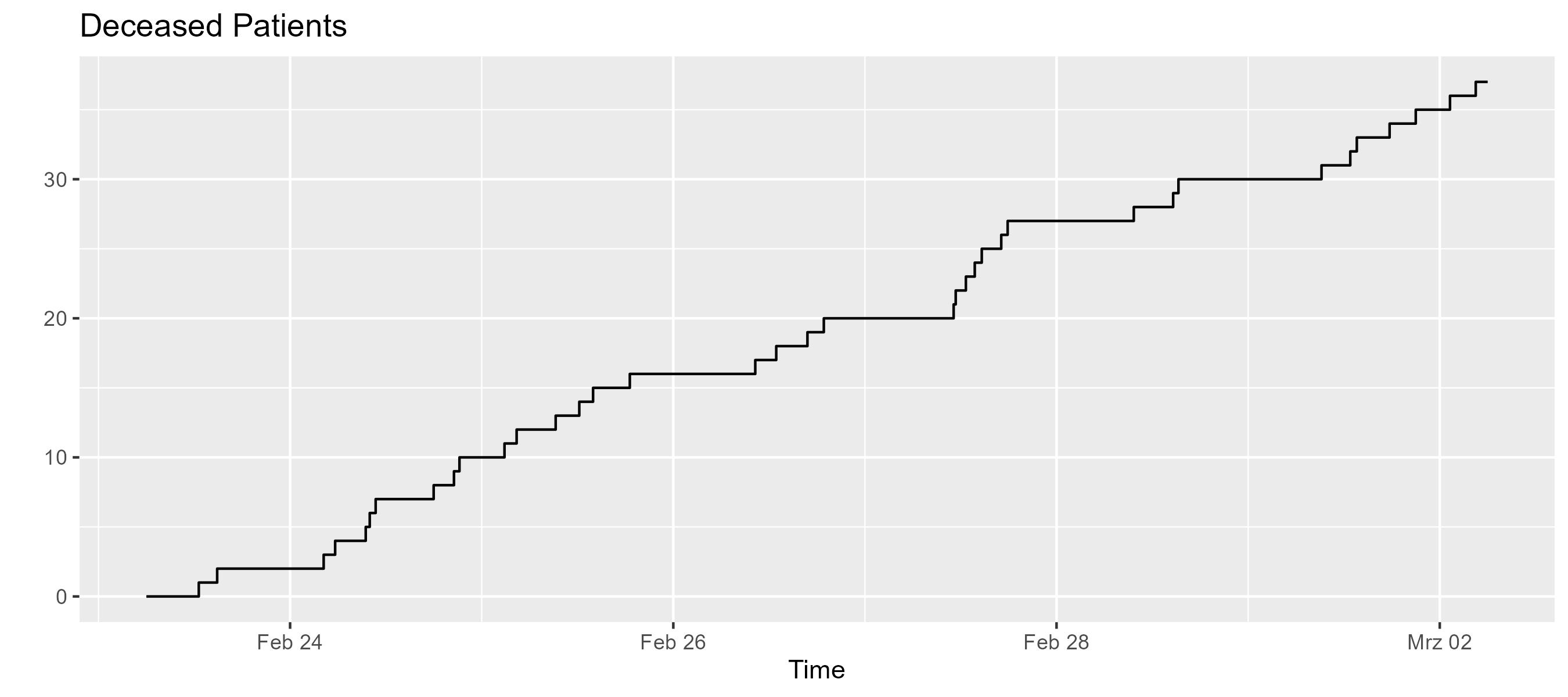

er.deceasedMonitor.display("Deceased Patients")

jpeg

Analysis

To analyze the model, we first use different visualization functinos defined for collection os states, components and resources.

import org.kalasim.plot.kravis.displayTimelines

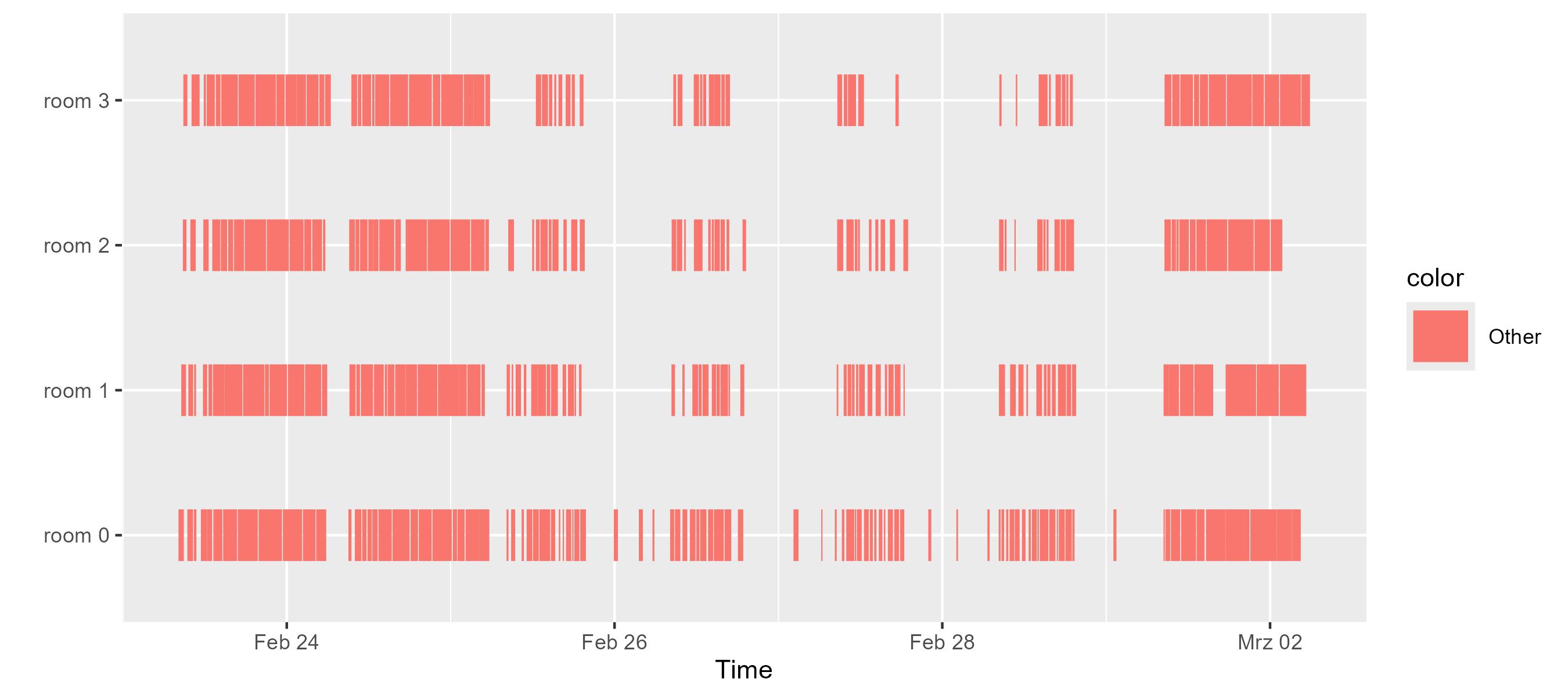

er.doctors.displayTimelines()

jpeg

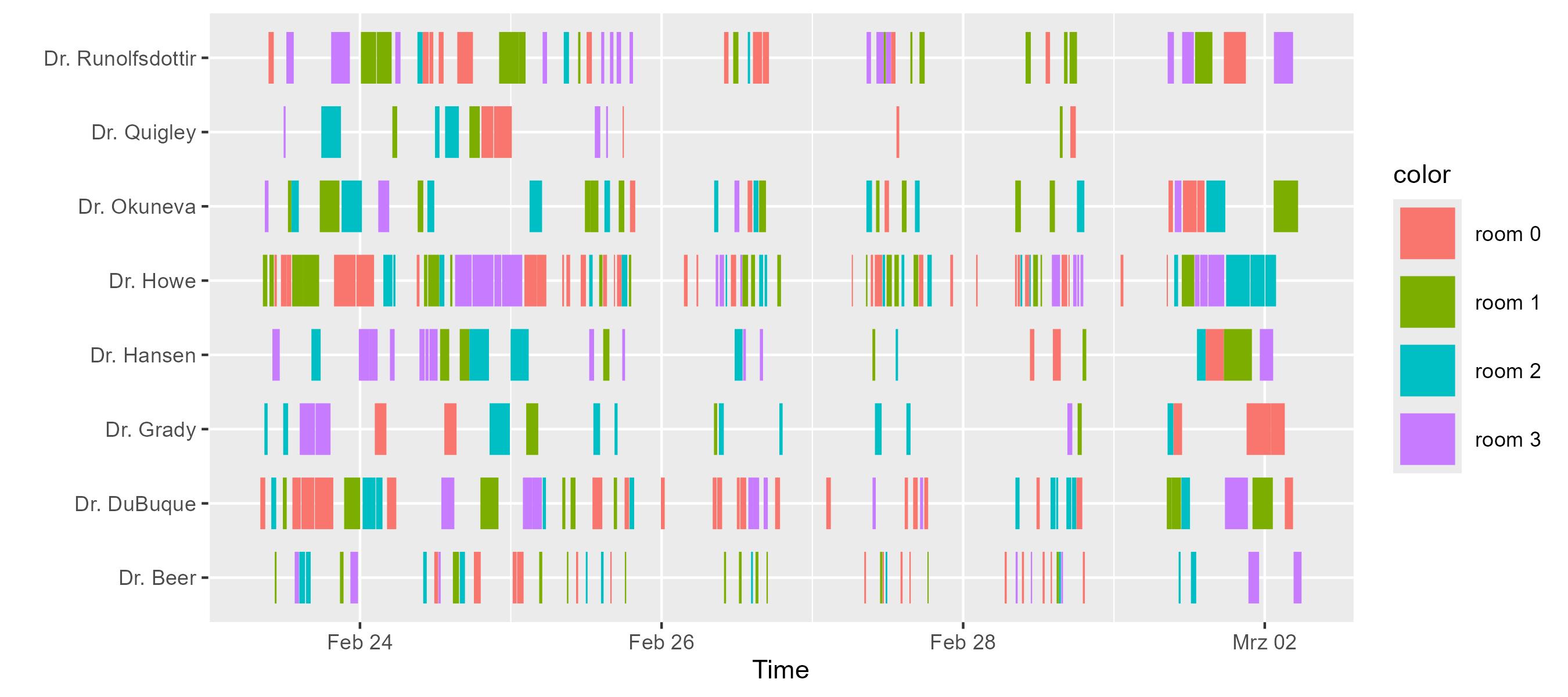

er.doctors.displayTimelines(byRequester = true, colorBy = { it.requester.name })

jpeg

When studying the data from above, we observe that an ER with more staff than available surgery rooms (e.g., numPhysicians = 8 but only a limited number of rooms as defined in the EmergencyRoom example), we observe that the bottleneck shifts from staff availability to room availability.

import org.kalasim.plot.kravis.displayStateCounts

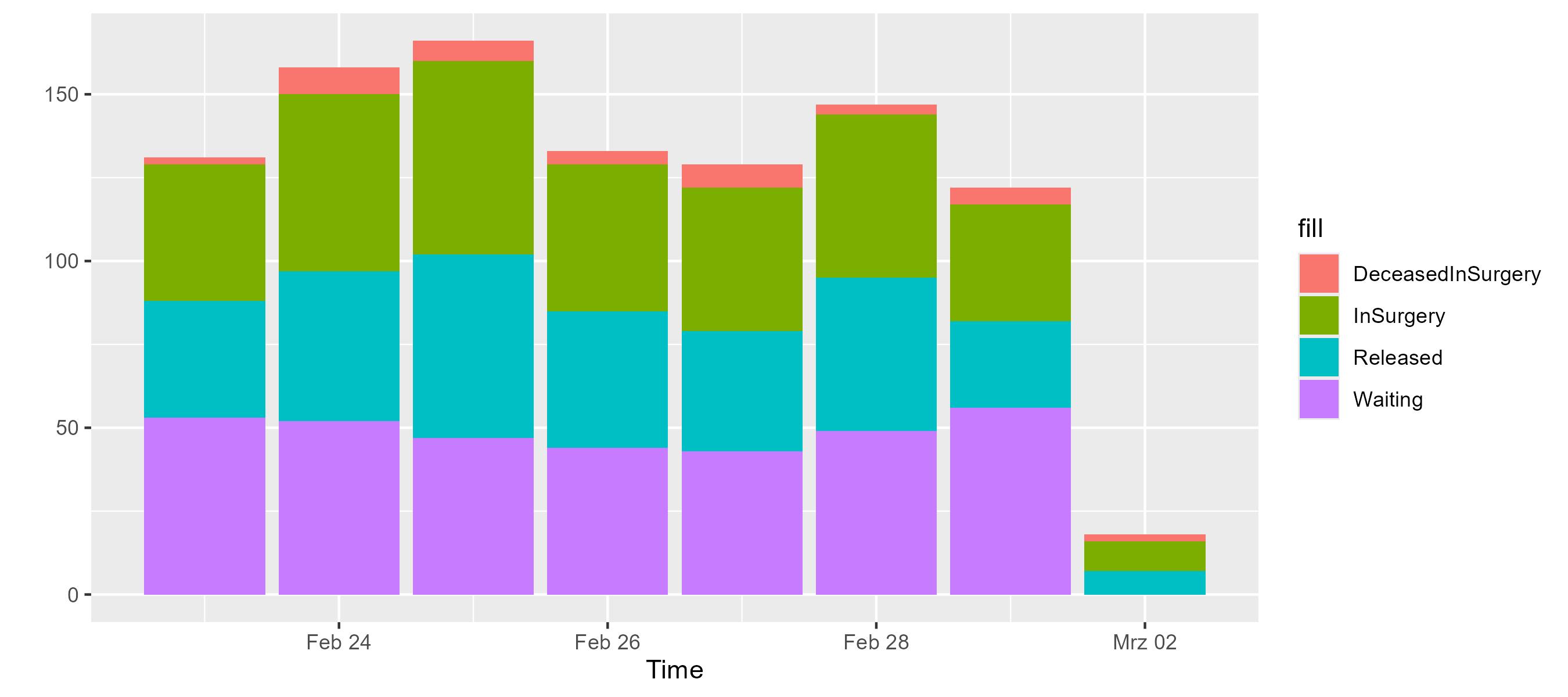

er.patients.map { it.patientStatus }.displayStateCounts()

jpeg

Daily statistics vary slightly, but the overall distribution remains stable. This is expected since the current model does not yet include time-varying factors such as weekend shifts or staff changes.

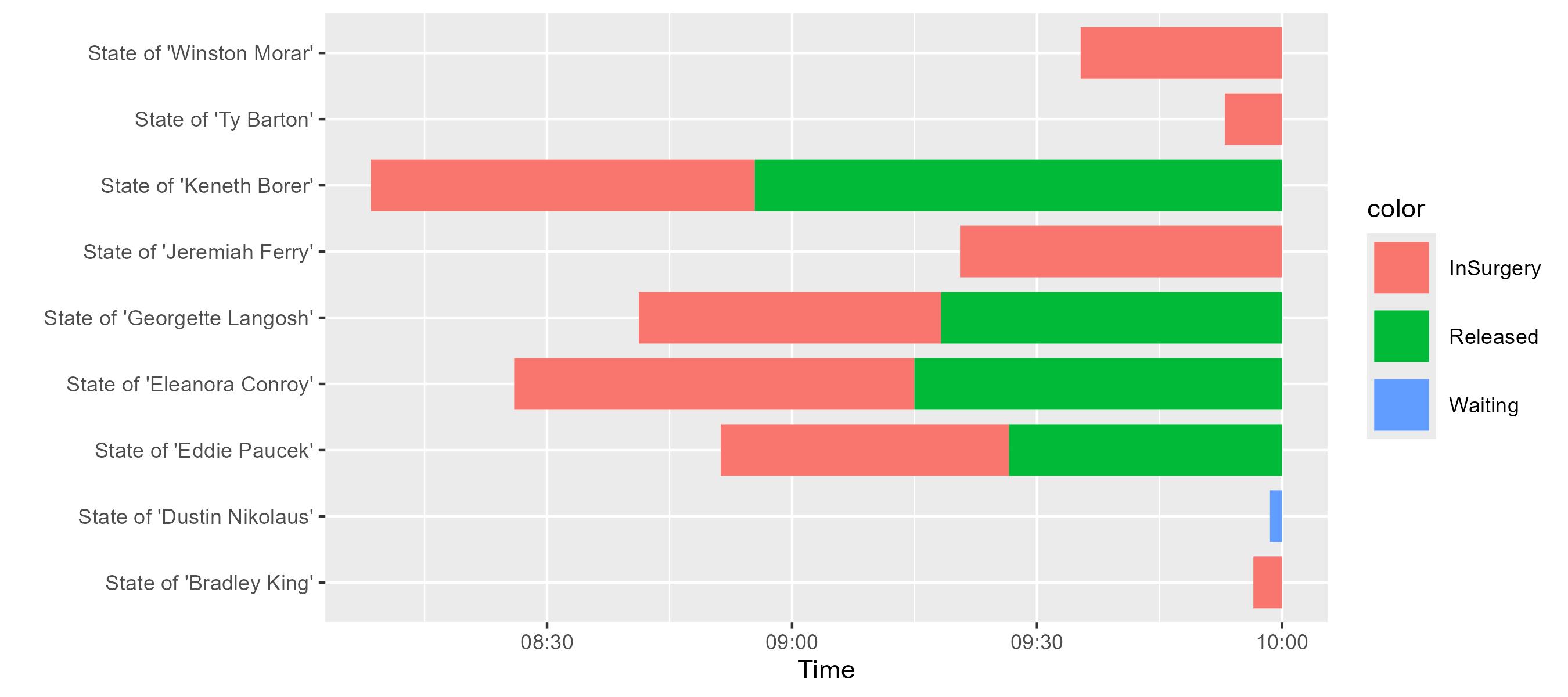

er.patients.take(20).map { it.patientStatus }.displayTimelines(to = er.startDate + 4.hours)

jpeg

We observe the different arrivals and their stay durations. Most of the sampled patients in the observed time window are going into surgey without a previous waiting time.

import org.kalasim.plot.kravis.displayStayDistributions

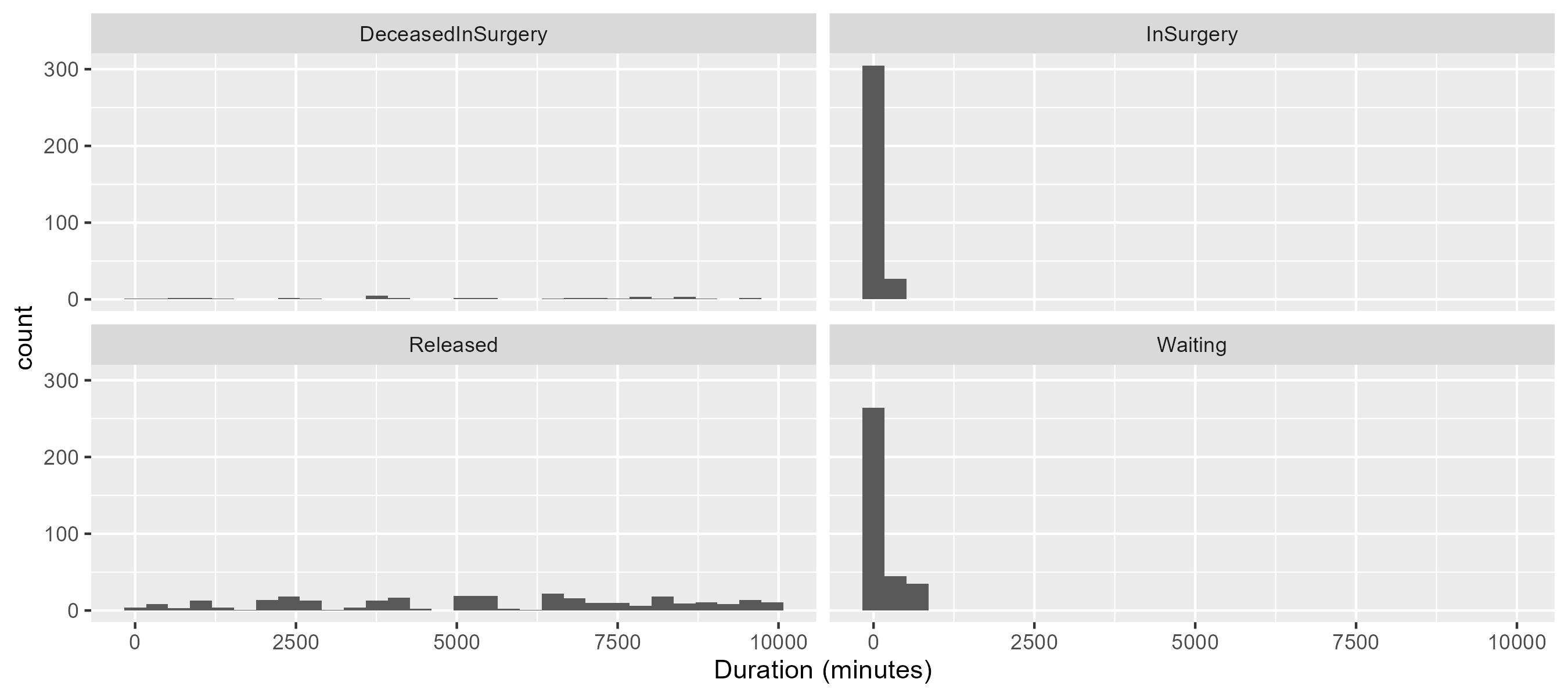

er.patients.map { it.patientStatus }.displayStayDistributions()

jpeg

The distribution of stay durations is heavily skewed towards shorter stays, indicating that most patients are discharged quickly. This could be due to the efficient triage and treatment processes in place.

Finally, as a DES model is driven by events, we inspect raw events from the model (using the kotlin-dataframe interation)

import org.kalasim.analysis.InteractionEvent

val interactions = er.eventsInstanceOf<InteractionEvent>()

interactions.first()

{"receiver":"main","details":"running; Hold +168.00, scheduled for 168.00","time":"2022-02-23T06:00:00Z","state":"SCHEDULED","type":"RescheduledEvent"}

val intDF = interactions.toDataFrame()

intDF.take(10)
